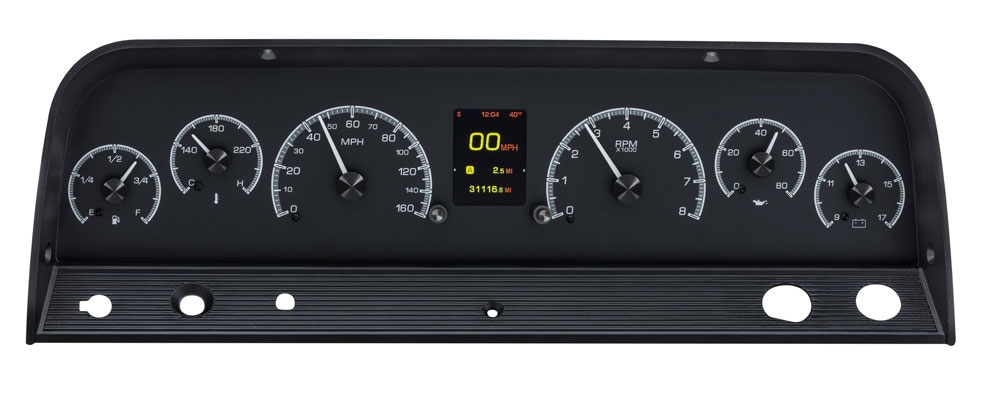

The once forgotten 1964-66 Chevy pickups have stepped into the limelight, and this direct-fit instrument system is the perfect way to finish off your C10. Six analog gauge sweeps with a large TFT display taking center stage offer a blend of high-tech functionality and classic looks while keeping the driver informed of under-hood activities. This one-piece system bolts to your stock or reproduction bezel using supplied hardware but does not fit GMC.
Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
|
Analog Gauges |
|||||||||||
| Speedometer |
|
||||||||||
| Tachometer | ·0- 8,000 RPM | ||||||||||
| Oil Pressure | ·0- 80 psi | ||||||||||
| Water Temperature | ·100- 260ºF (optional metric version 40- 120ºC) | ||||||||||
| Fuel Level | ·E, 1/4, 1/2, 3/4, F | ||||||||||
| Voltmeter | ·9- 17 VDC | ||||||||||
|
Digital Message Centers |
|||||||||||
| Standard Displays |
|
||||||||||
| Performance Meters |
|
||||||||||
| Gauges |
|
||||||||||
|
Built-in Indicators |
|||||||||||
| Indicators |
|
||||||||||
|
Lighting Technology |
|||||||||||
| Colors | ·Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color. | ||||||||||
| Brightness | ·Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality. | ||||||||||
| Themes | ·With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself. | ||||||||||
| Technology | ·Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice. | ||||||||||
|
Day Images |
|||
 |
|||
|

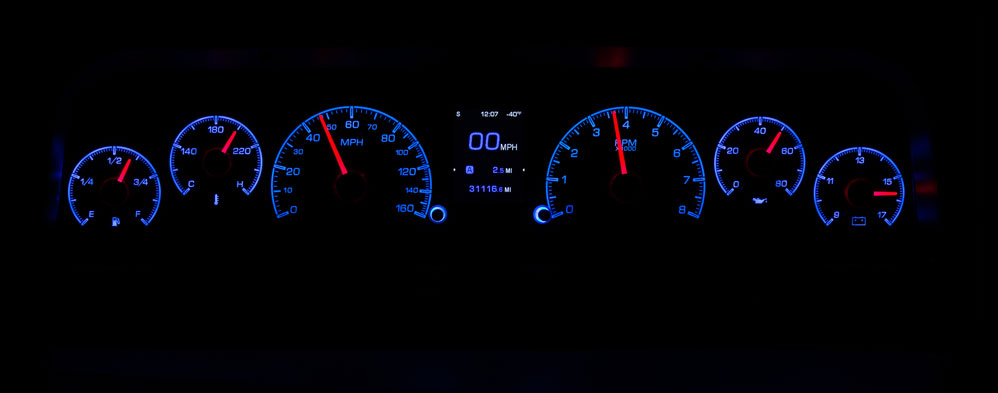

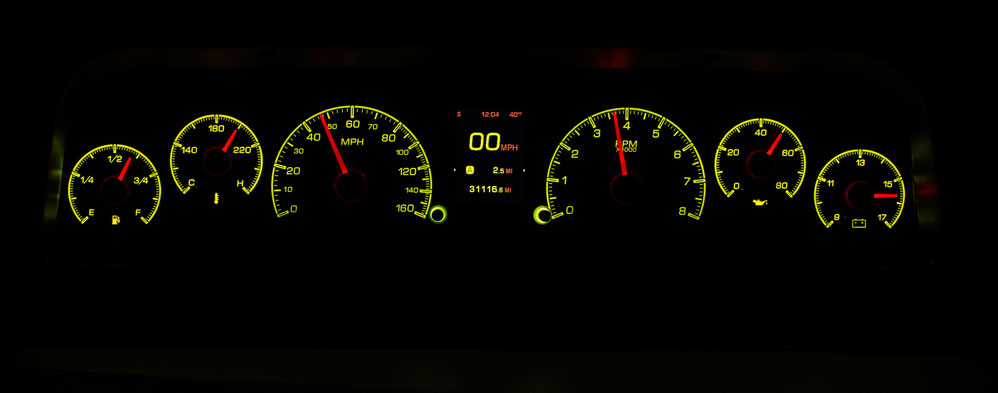

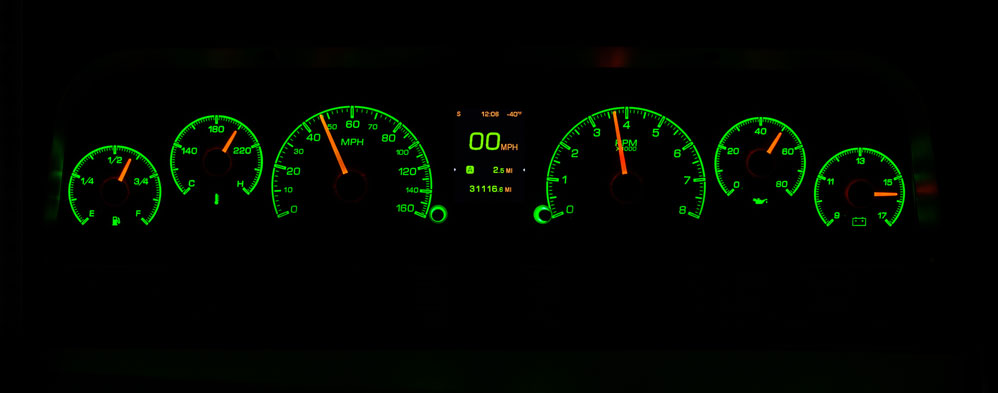

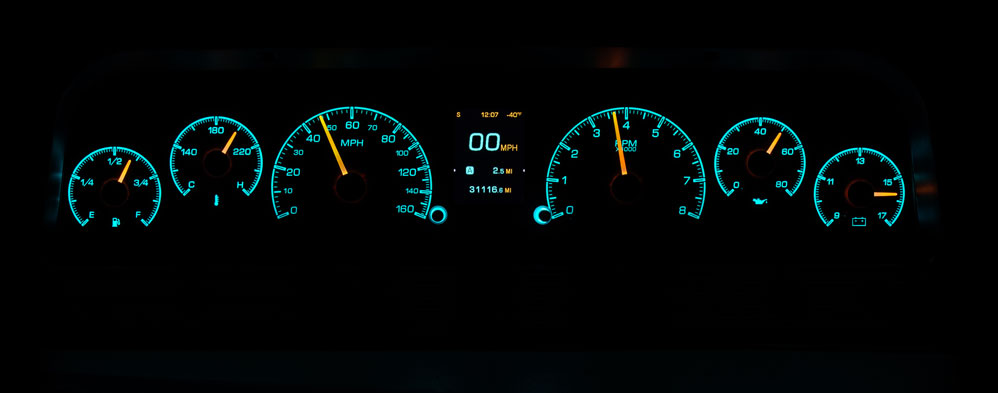

Night Images |
|||
 |
 |
 |
 |
